Belt Conveyor

Belt Conveyor

Description

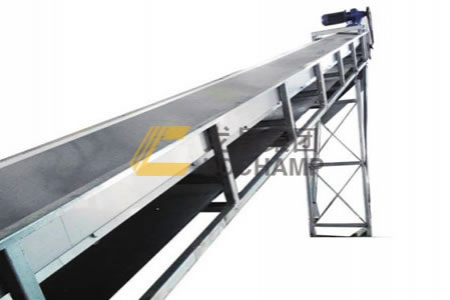

The belt conveyor is applicable to convey powdery, granular, small block materials with a stacking density of lower than 1.67 t/m3. It can be used at an environmental temperature between -20℃ to +40℃, while the material temperature is required lower than 60℃.

The length and assembly form of the belt conveyor can be combined as requested. The transmission system can be an electric roller or a drive device with a drive frame.

Application
Our belt conveyor is mainly used to convey loose materials or packaged articles. Depending on the requirements on the conveying process, customers can choose a single conveyor for conveying as well as a horizontal or inclined conveying system composed of several conveyors or this conveyor and other conveying equipment, in order to meet the demands of different layout types on the operation lines. It is widely used in mining, metallurgy, coal among many other industries.

Parameters
Model Belt conveyor (mm) Conveying capacity (t/h) Belt speed (m/s) Working angle(°) Power (kw)
B500 500 ≤5 0.8 < 25 Depending on length
B650 650 5--10 0.8
B800 800 10--15 0.8
B1000 1000 15--25 0.8
Features of the belt conveyor
  • Large conveying capacity: 15~25ton per hour
  • The use of this belt conveyor for continuous or intermittent conveying of powdery and granular materials below 100Kg allows for quick, smooth conveying with low noise, as well as slope conveying.
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
