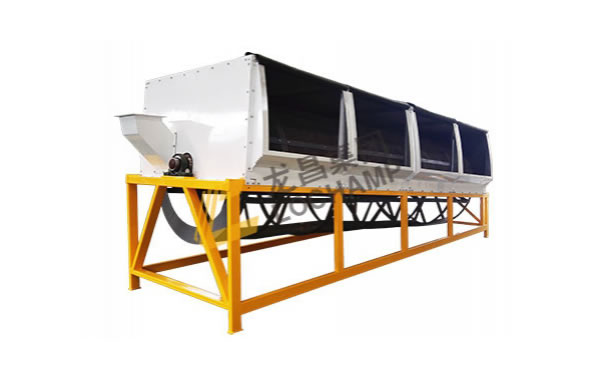

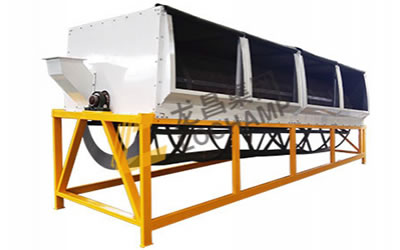

Cylinder Grading Screen

Cylinder Grading Screen
Cylinder Grading Screen Cylinder Grading Screen

Description
LoChamp’s cylinder grading screen is designed with a fully sealed structure to prevent material spillage. In addition, the section contacting with materials is made of stainless steel, so it is corrosion resistant and features a long service life. Both sides of the cylinder grading screen’s box can be completely opened to facilitate users to clean the screen surface and update the screen bottom.

Application
The cylinder grading screen is mainly used for the sifting of dry powdery or granular materials, which is widely applied to organic fertilizer, food, medicine, abrasives and many other industries.

Parameters
Specification Rotational speed (r/min) Power(kw) Screen angle (o) Screen size(mm) Yield(t/h)
FSY1.2X4.8 19 5.5 5 1-4.5 6-10
FSY1.5X5 17 7.5 5 1-4.5 10-15
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
