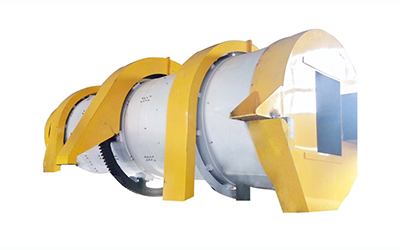

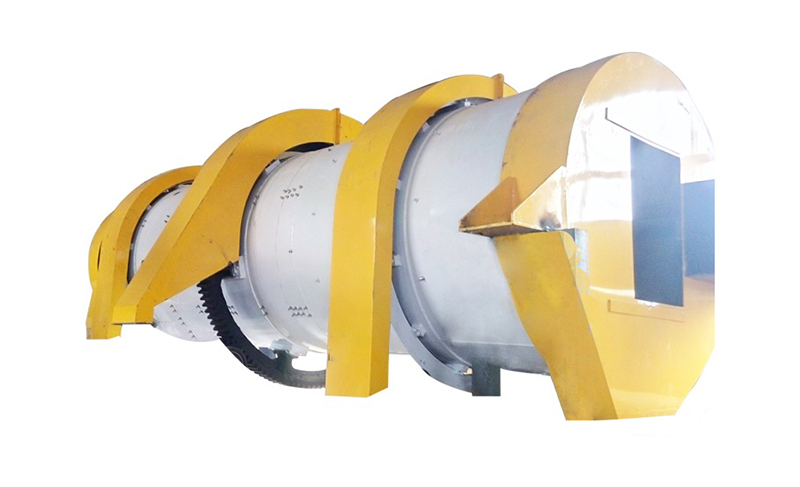

Rotor Drum Granulator

Rotor Drum Granulator

Description
As one of the crucial equipment in organic fertilizer industry, the rotor drum granulator is a forming machinery making materials into specific shapes. The main working mode of the equipment is wet granulation, utilizing a quantitative mount of water or vapor to make the basic fertilizer fully turned, rolled and gathered into a ball after it is moistened in the cylinder. For large-sized rotor drum granulator, we employ double motor to start and single motor to operate, saving 25% electricity.

Application
The rotor drum granulator is suitable for cold and hot granulation as well as large-scale production of mixed organic fertilizers with high, medium and low concentrations

Parameters
cifications Cylinder Production capacity
Inclination Inner diameter Length Rotational speed Power
° Mm Mm r/min Kw t/h
Φ1.5*5 2-2.5 1500 5000 14 11 3--5
Φ1.8*6 1800 6000 11.5 15 5--8
Φ2.0*9 2000 9000 10.8 22 8--10
Φ2.4*10 2400 10000 9.7 37 12--15
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
