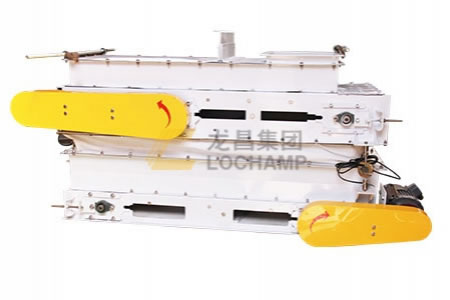

Weigh Belt Feeder

Weigh Belt Feeder

Description
The weigh belt feeder is the core equipment in the automatic batching process of organic fertilizers. Our equipment chooses a flat belt instead of a skirt belt, which can not only prevent the skirt from dropping materials but also create a more hygienic production environment for workers.

The equipment can store multiple sets of customers’ formulation at the same time for customers to use and modify by customers at any time. Moreover, the formulation data will not be lost if the power of the device is suddenly cut off.

Parameters
Specification Blanking volume(m3/h) Belt width(mm) Power (Kw)
PDC650 10-20 650 0.55+0.37
PDC500 10 500 0.55+0.37
Features of the weigh belt feeder
  • The dynamic cumulative error is better than grade 0.5. The extracted feeding weight is not affected by the tension of the belt, so that the feeding is more accurate.
  • The weigh belt feeder is possessed with online result display function of flow rate and weight percentage.
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
