Rotary Distributor
Description

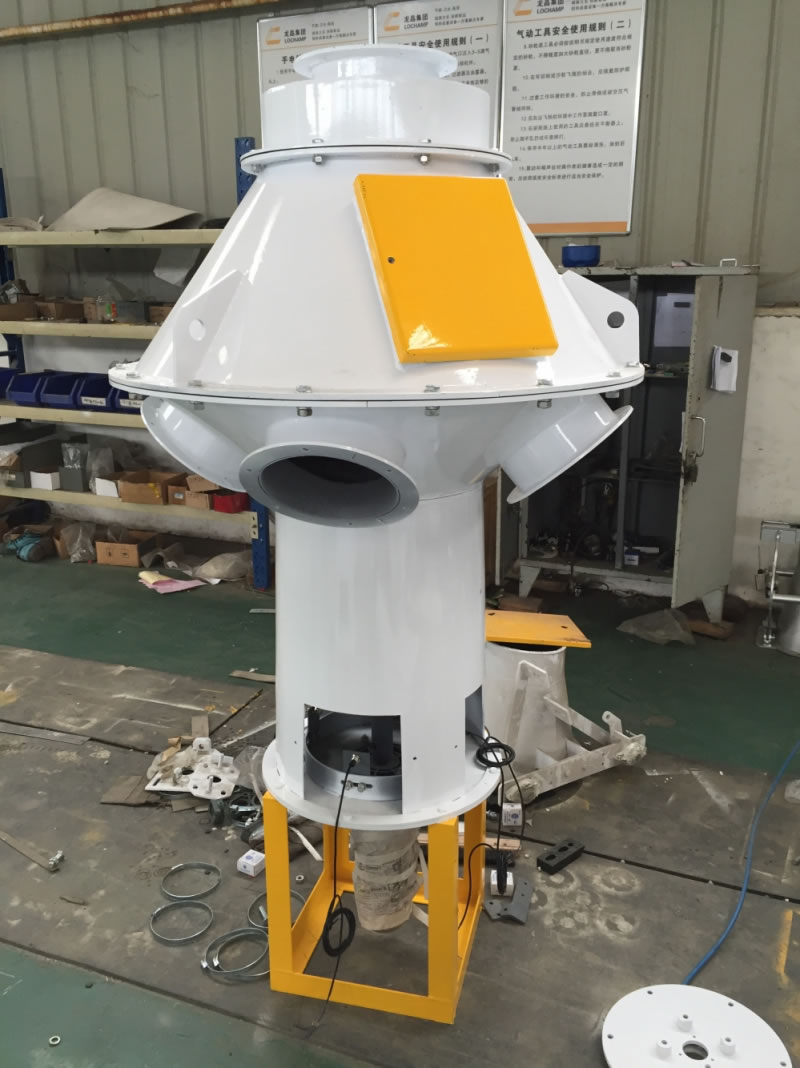

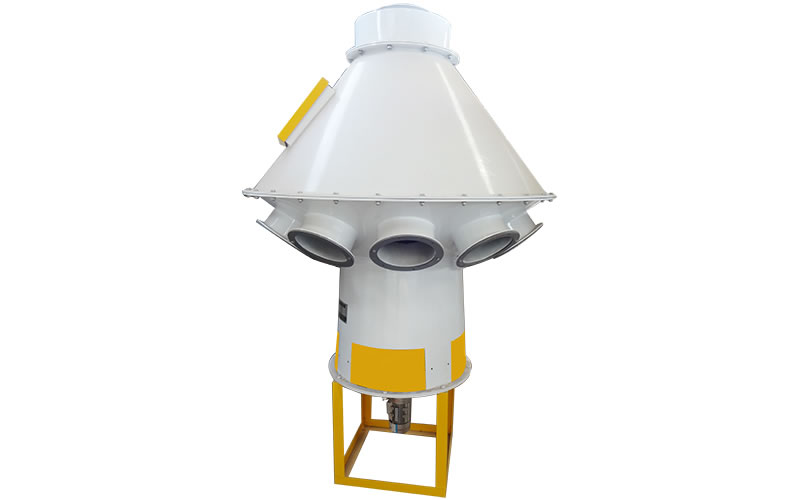

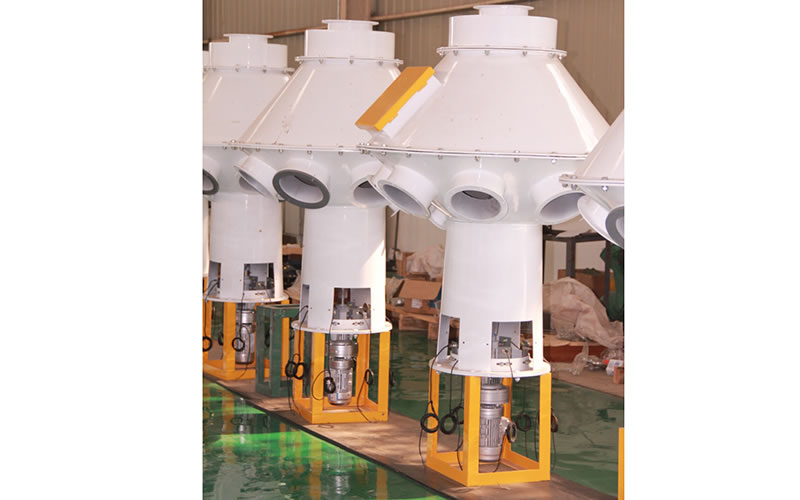

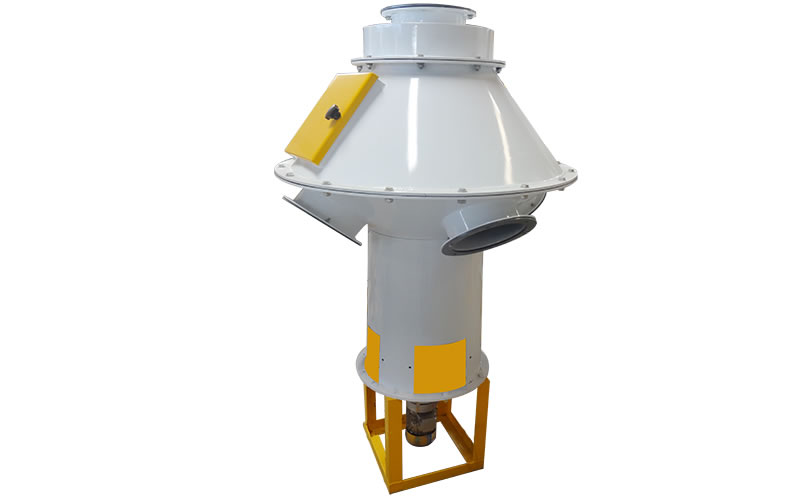

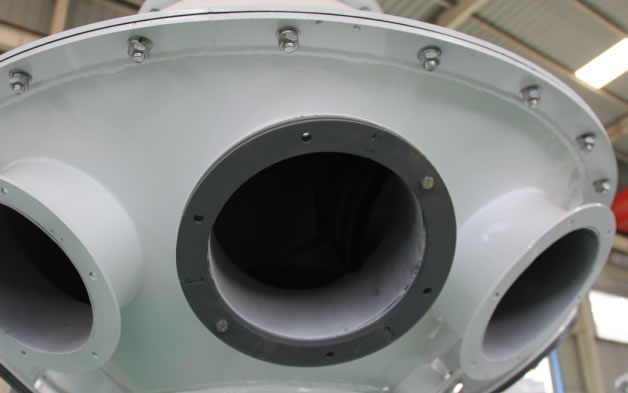

LoChamp’s TFPX series rotary distributor is a conveying machine generally used in combination with an elevator, mainly distributing the lifted materials to different places as needed. By means of the stroke switch and the positioning slot, the guide feeding bend of the rotary distributor realizes accurate positioning which can avoid material channeling. The inlet and outlet of our rotary distributor are available in 220mm and 300mm specifications.
Application
The equipment is generally used to distribute materials to different warehouses as needed, widely applied to distributing powdery and granular materials in grain, feed processing plants, oil plants, starch factories etc.
| Model | Power(kw) | Inner diameter(mm) | Yield(t/h) | Weight(kg) |
| TFPX4 | 0.37 | φ220 | 30-60 | 224 |
| TFPX6 | 0.37 | φ220 | 30-60 | 224 |
| TFPX8 | 0.37 | φ220 | 30-60 | 275.5 |
| TFPX10 | 0.37 | φ220 | 30-60 | 342 |
| TFPX12 | 0.37 | φ220 | 30-60 | 383 |
| TFPX4 | 0.37 | φ300 | 60-100 | / |
| TFPX6 | 0.37 | φ300 | 60-100 | / |
| TFPX8 | 0.37 | φ300 | 60-100 | / |
| TFPX10 | 0.37 | φ300 | 60-100 | / |
| TFPX12 | 0.37 | φ300 | 60-100 | / |
1. An access door is provided on the equipment to facilitate daily maintenance, examination and repair.

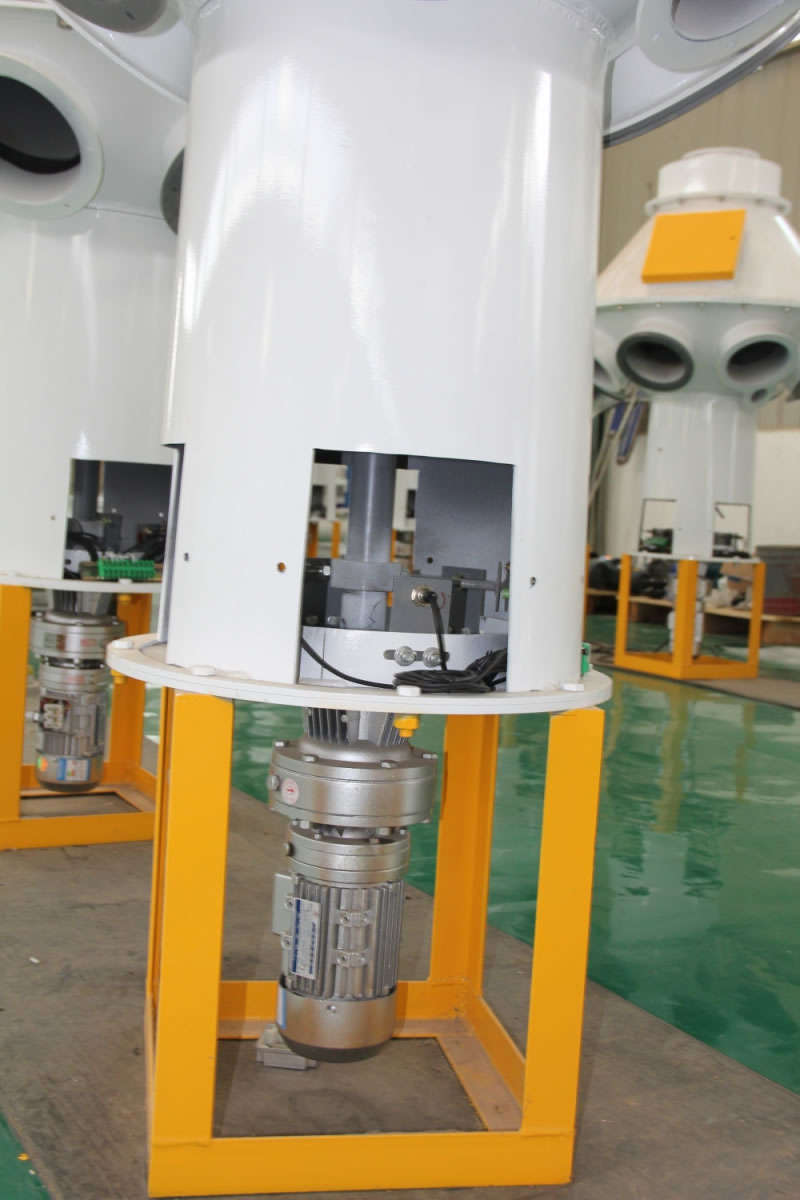

2. Reducer direct drive is employed so the structure is compact, enabling smooth rotation of the guide feeding bend.
