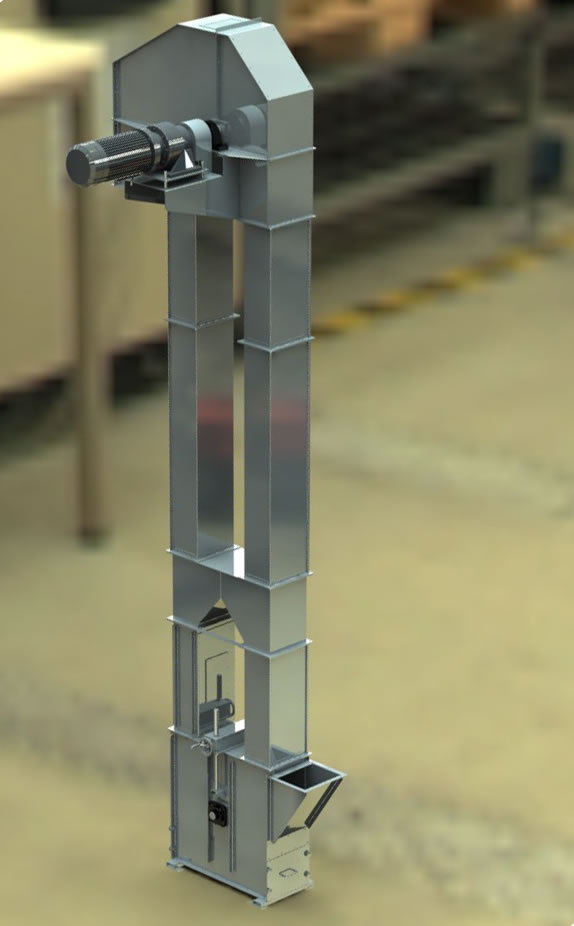

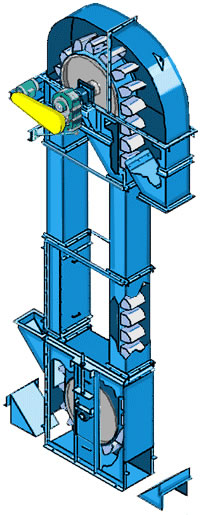

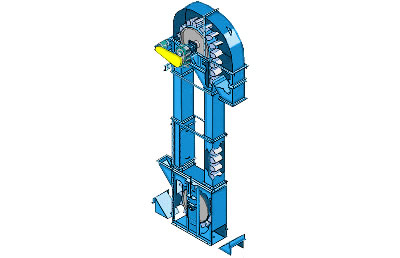

Bucket Elevator

Bucket Elevator
Bucket Elevator Bucket Elevator Bucket Elevator Bucket Elevator

Description
LoChamp’s TDTG series bucket elevator is a kind of stationary conveying equipment, mainly used for continuous vertical lifting of powdery, granular and small lumpy materials. The traction mechanism of the elevator is a circular chain, thus allowing to convey materials with a higher temperature, not excessing 250℃. With a maximum conveying height reaching up to 40m and a lifting efficiency to 120m3/h, the use of our bucket elevator can significantly save your time as well as production cost.

Application
Bucket Elevator

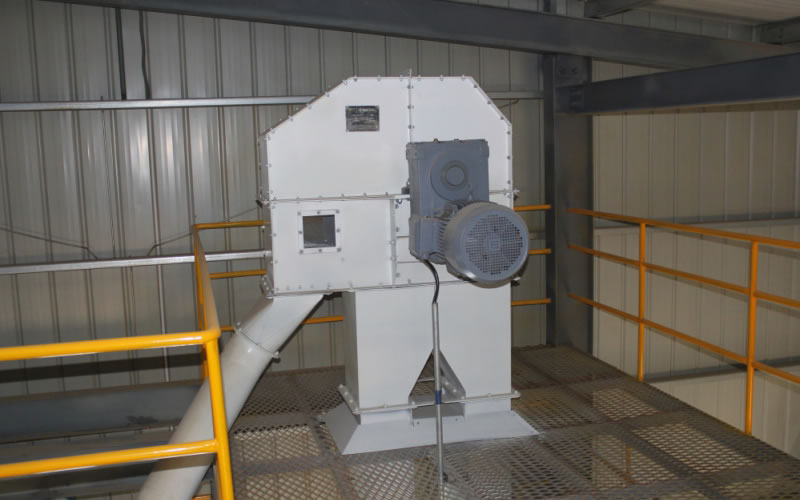

The TDTG series bucket elevator is applicable to convey powdery, granular, small lumpy materials that are friable or fragile, such as animal feed, fertilizer, sawdust, ore, etc. It is widely used for the lifting of bulk materials in all scales of feed mills, flour mills, rice mills, oil factories, starch plants, grain depots, port terminals.

Parameters
Model Power(kw) Yield (m3/h)  Linear velocity of belt(m/s) Conveying height(m)
TDTG 26/18 3 20 1.23 10-20
4 20 1.23 20-35
TDTG 40/23 5.5 50 1.71 15-23
7.5 50 1.71 23-35
TDTG 40/28 5.5 60 1.71 12-19
7.5 60 1.71 19-29
11 60 1.71 29-45
TDTG 50/28 5.5 70 2.14 10-16
7.5 70 2.14 16-23
11 70 2.14 23-36
TDTG 63/28 5.5 120 2.87 12-19
7.5 120 2.87 27-33
11 120 2.87 33-40
Advantages of the bucket elevator

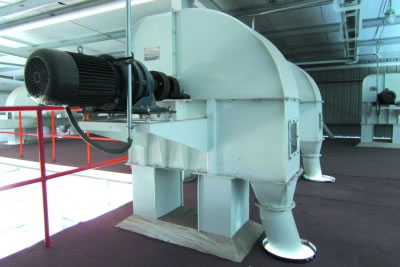

Advantages of the bucket elevator

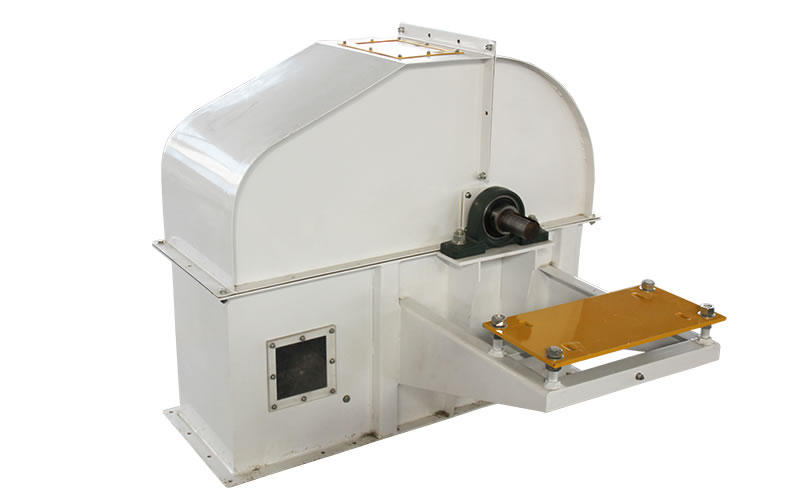

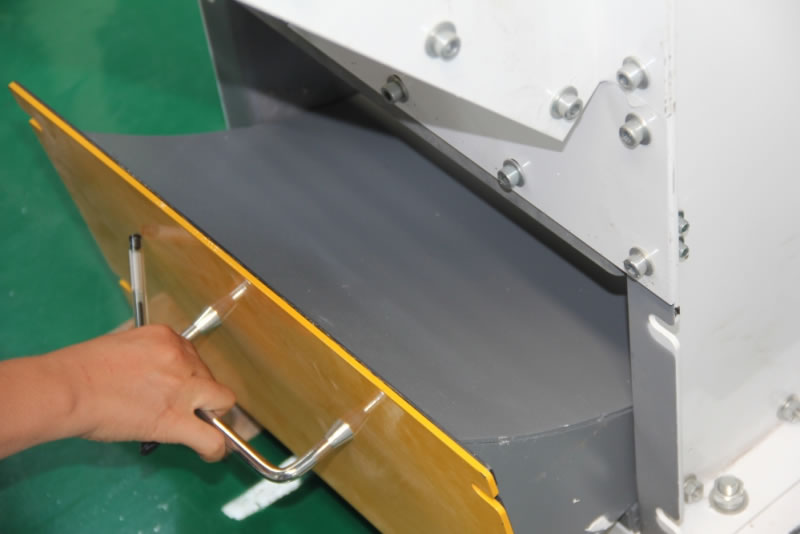

1. A split-hood is employed to facilitate users to replace the round rubber on the working head.

Advantages of the bucket elevator

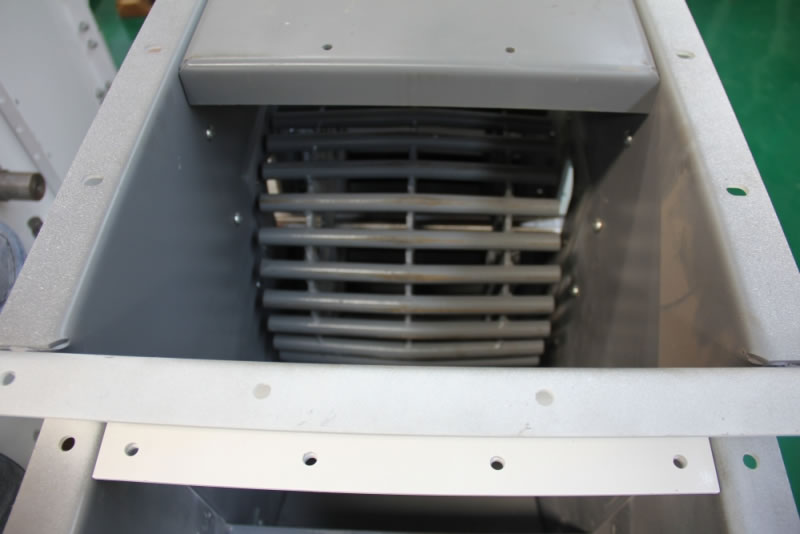

2. The trunk sections connected with dedicated splicing design are formed at one time, which are provided with excellent rigidity and sealing performance, beautiful appearance and not easily deformed.

Advantages of the bucket elevator

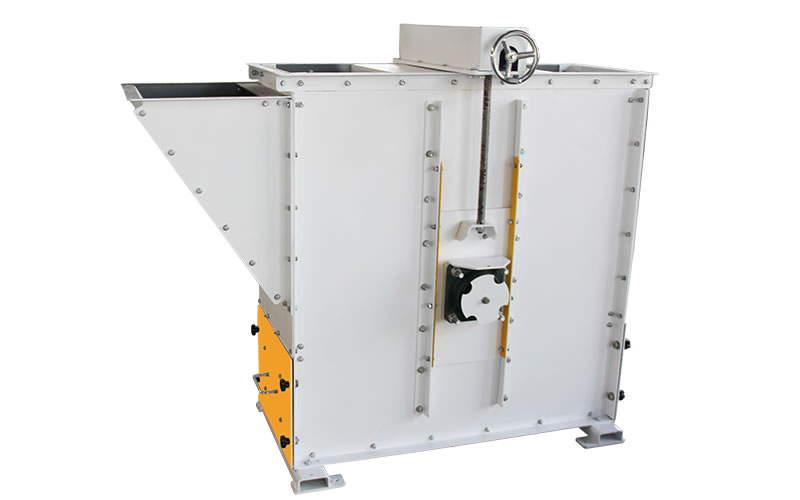

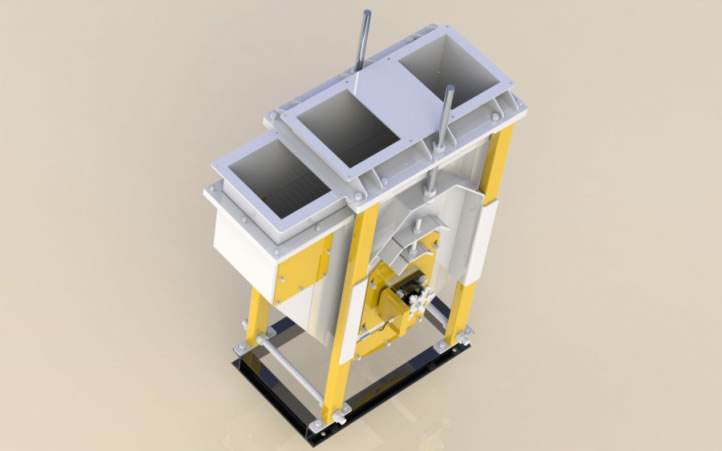

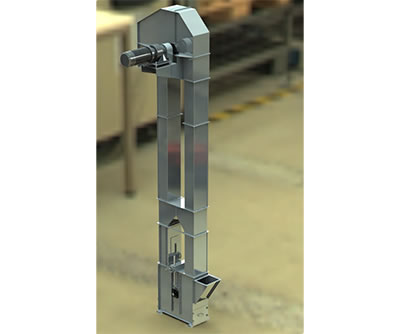

3. Boot wheel structure style can be equipped additionally to ensure the best adaptability of the equipment.

Advantages of the bucket elevator

4. Comprehensive safety configuration is implemented to guarantee optimal use and safety of equipment.
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
