Animal Feed Production Line

Hammer Mill / Animal Feed Equipment

Description

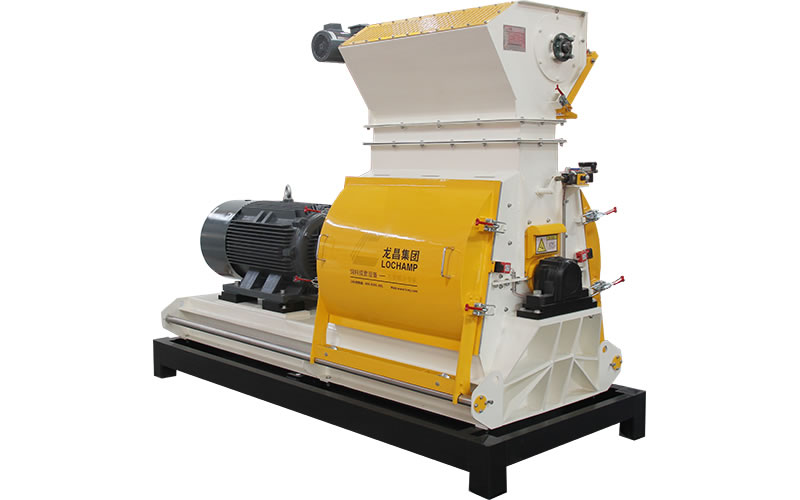

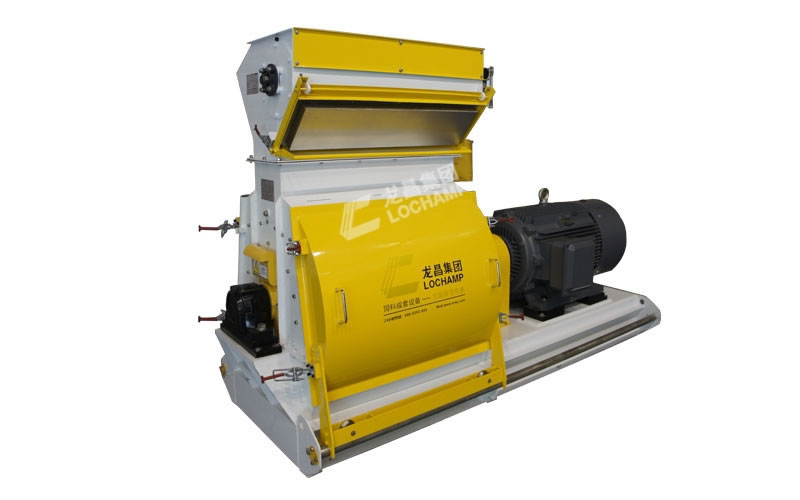

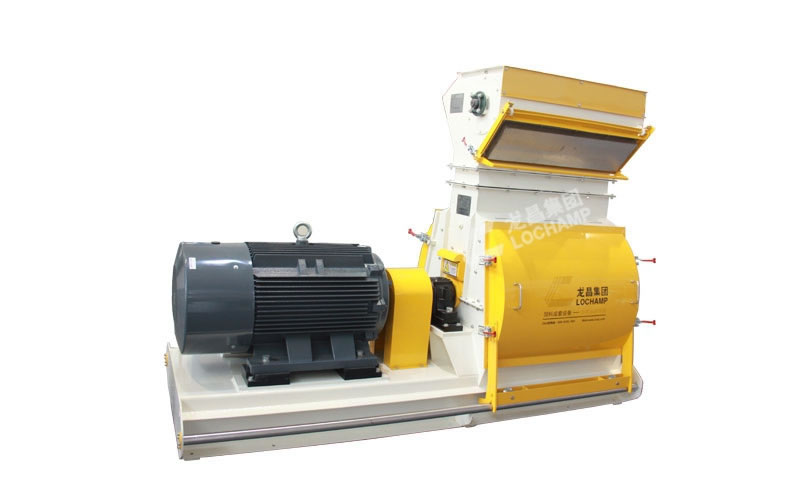

The SFSP series hammer mill is used to crush all kinds of particle feeds, such as corn, sorghum, wheat, crushed pie feeds and other materials. Depending on customers’ demands, the crushed particle size can be realized simply by changing the screen. This hammer mill is designed with steel plate welded structure, the motor and rotor installed on the same base, pin coupling direct drive employed, which can reduce the energy loss of the transmission devices and vibration, so as to enable it to operate more stable.

The hammer mill features a water drop-shaped crushing chamber design. Such a structural design forms circumfluence when the rotor rotates, besides such a water drop-shaped design breaks the circulation structure and realizes secondary or multiple smashing of materials. Compared with other models, it increases the yield by 25%.

Advantages of the hammer mill

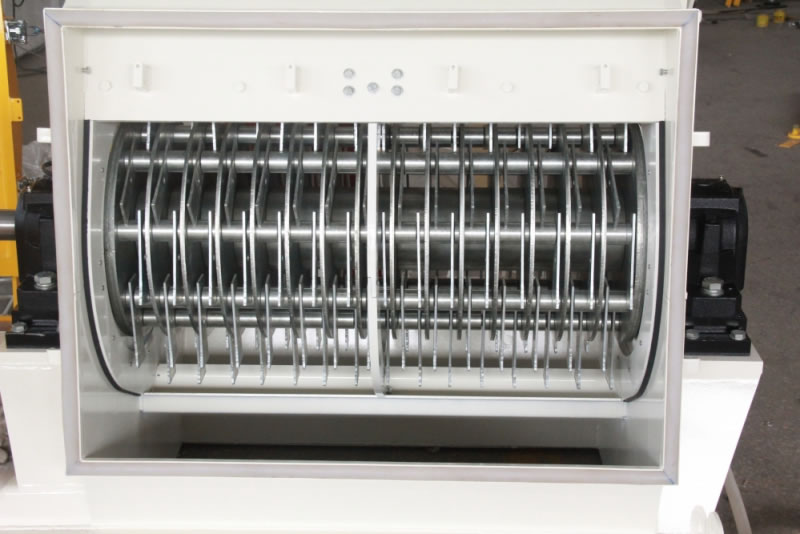

1. Super wide crushing work surface and optimally arranged hammer mill beaters are employed to offer better crushing performance when the hammer mill crushes smaller particle size feeds.

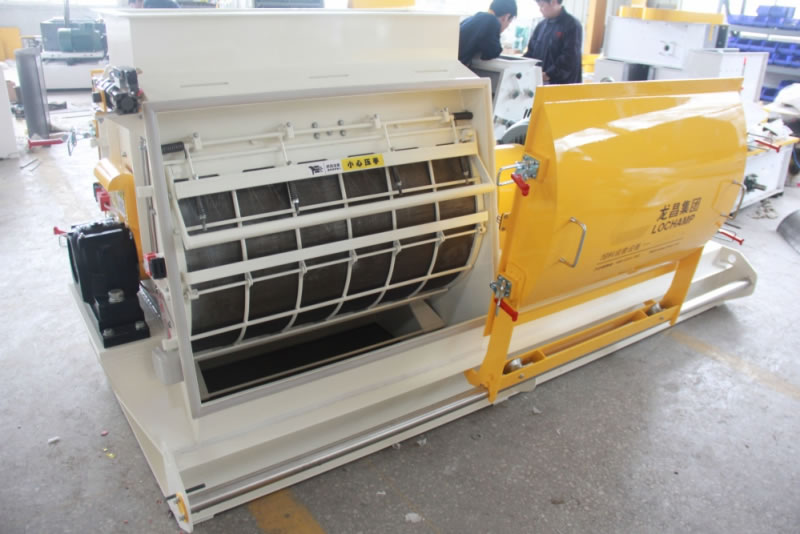

2. Displaceable operation gate and screen quick release mechanism are equipped to facilitate users to replace mesh pieces and the screen is pressed tighter at the same time.

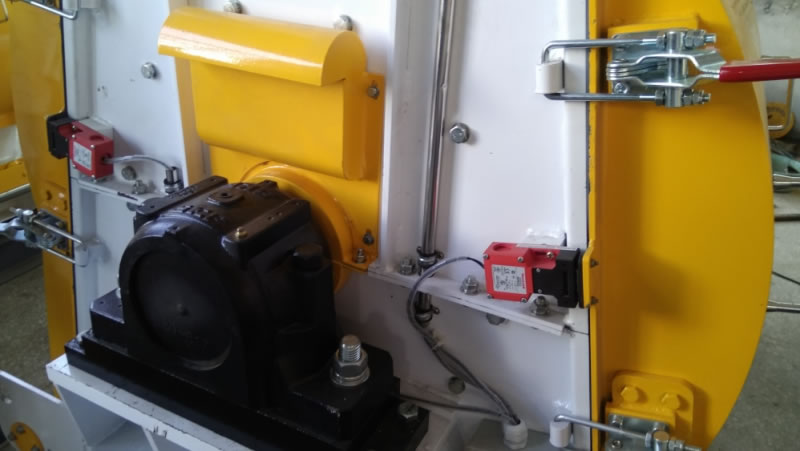

3. It is also configured with safety interlocked device to protect the safety of the operators.

4. Axial inlet system is adopted to increase the yield of small bore diameter materials by over 25%.
