Animal Feed Production Line

Rotatory Grading Sifter

  • Rotatory Grading Sifter
  • Rotatory Grading Sifter
  • Rotatory Grading Sifter

Description
The SFJH series rotatory grading sifter is mainly composed of V-belt driven weight balance mechanism and elastic supporting mechanism in tail, which can make the materials rotate on the working surface of the horizontal rotating body, so that the sifting efficiency is high and the vibration is low. The interior of the discharge port of the sifter features a streamlined design, which can make the materials not deposit and prevent cross-contamination among different materials.

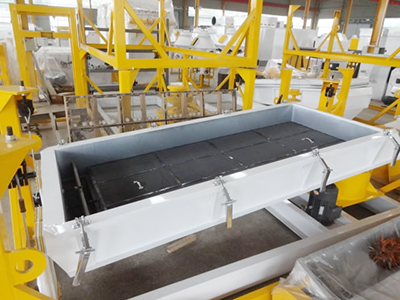

Rotatory Grading Sifter

Application
The rotatory grading sifter is applicable for the grading of pellet materials and crushing materials for feed plants, as well as intermediate products after secondary crushing for large and medium-sized feed plants. In addition, the equipment can also be widely applied to the sifting and grading jobs of raw materials and finished products in grain, food, sugaring and many other industries.

Parameters
Model Power(kw) Yield(t/h) Outline size(mm)
Granular Powdery
SFJH80×1C 2.2 5-8 3-6 2793×1200×990
SFJH80×2C 2.2 5-8 3-6 2881×1290×1112
SFJH80×3C 2.2 5-8 3-6 2973×1290×1303
SFJH100×1C 2.2 8-13 6-10 3345×1510×1307
SFJH100×2C 2.2 8-13 6-10 3433×1510×1307
SFJH100×3C 2.2 8-13 6-10 3521×1510×1307
SFJH130×2C 3.0 10-16 8-14 3223×1845×1317
SFJH130×3C 3.0 10-16 8-14 3489×1845×1317
SFJH150×2C 3.0 20-26 18-20 4096×1980×1317
SFJH150×3C 4.0 15-18 12-16 4411×1980×1317
SFJH180×1C 7.5 25-40 20-30 /
SFJH180×2C 7.5 25-40 20-30 /
SFJH200×1C 7.5 30-48 24-36 /
SFJH200×2C 7.5 30-48 24-36 /
Advantages of the rotary grading sifter
  • Rotatory Grading Sifter

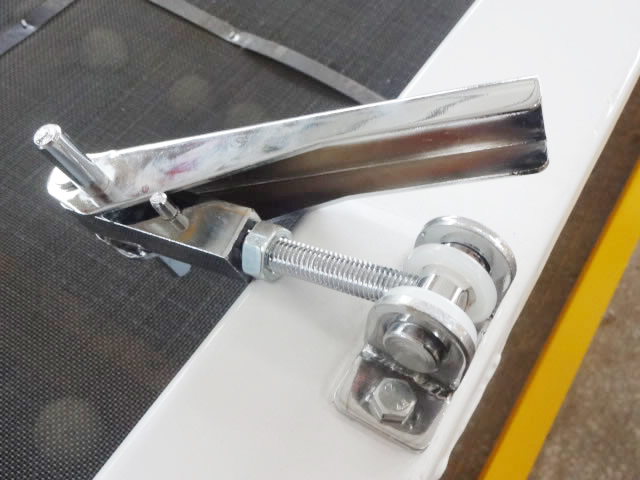

    The screen quick release lever is firm and the screen replacement is fast.

  • Rotatory Grading Sifter

    Depending on customers’ requests, a single-layer screen, two-layer screen or three-layer screen can be customized.
Founded in 1996, LoChamp is dedicated to the production of mechanical equipment sets used for animal feed, organic fertilizer, and biomass fuel. We can provide customers with comprehensive solutions including design, production, installation, and maintenance as well as complete animal feed projects, biomass projects, fertilizer projects and silo projects.
